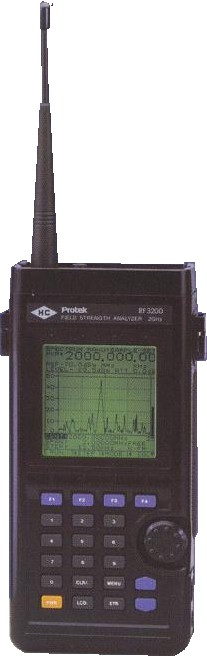

Hand Held and Battery operated |
|
|
100 KHz to 2060 MHz measurement range | |
|
|
Built in 2GHz frequency counter | |
|
|
Measures Wide band and Narrow band FM, AM and | |
| Single Sideband signals | ||
|
|
Phase lock loop for precise tuning and frequency | |
| measurement | ||
|
|
RS-232 interface | |
|
|
Back lit Display | |
|
|
Audio output and Built in speaker | |
|
|
Detachable antenna included | |
|
|
Up to 160 channels may be scanned and displayed | |
|
|
50 ohms or 75 ohms input impedance | |
|
|
All functions are menu selected | |
|
|
Instrument setups and display data may be stored in | |
| memory | ||
|
|
Includes software and RS-232 Cable | |
|
|
Hard Copy Printer output of spectrum and Bar graph | |
| displays | ||
|
|
Serial or parallel Interface | |
|
|
||
|
|

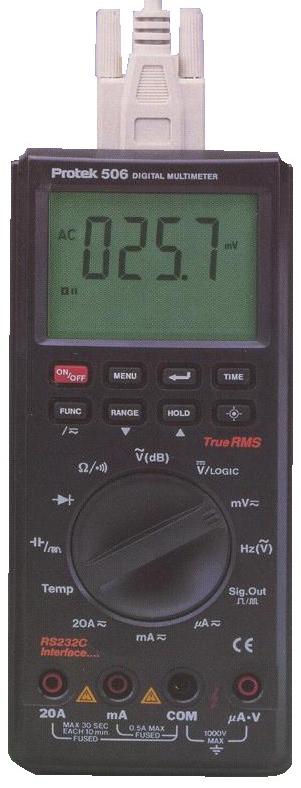

Dual display for frequency, AC voltage and |
| Temperature measurements | ||
|
|
10 MHz frequency counter | |
|
|
True RMS AC voltage and current readings | |
|
|
RS-232 interface and software for downloading | |
| measurements to a PC | ||
|
|
Decibel measurement | |
|
|
Analog Bargraph | |
|
|
10 memory locations | |
|
|
Time and stop watch mode with Alarm | |
|
|
Min., Max., Avg. and Relative mode | |
|
|
Capacitance and Inductance measurement | |
|
|
Temperature measurement in Centigrade and | |
| Fahrenheit | ||
|
|
Pulse generator output | |
|
|
Continuity and Diode test | |
|
|
Logic probe | |
|
|
Auto power off and "keep on" modes | |
|
|
Fused 20A input with warning beeper | |
|
|
Back light | |
|
|
Data hold and run mode | |
|
|
Low battery indicator | |
|
|
All functions have annunciators | |
|
|
Overload protection for all functions | |
|
|
Designed in compliance with UL1244 and VDE-0411 | |
|
|
||
